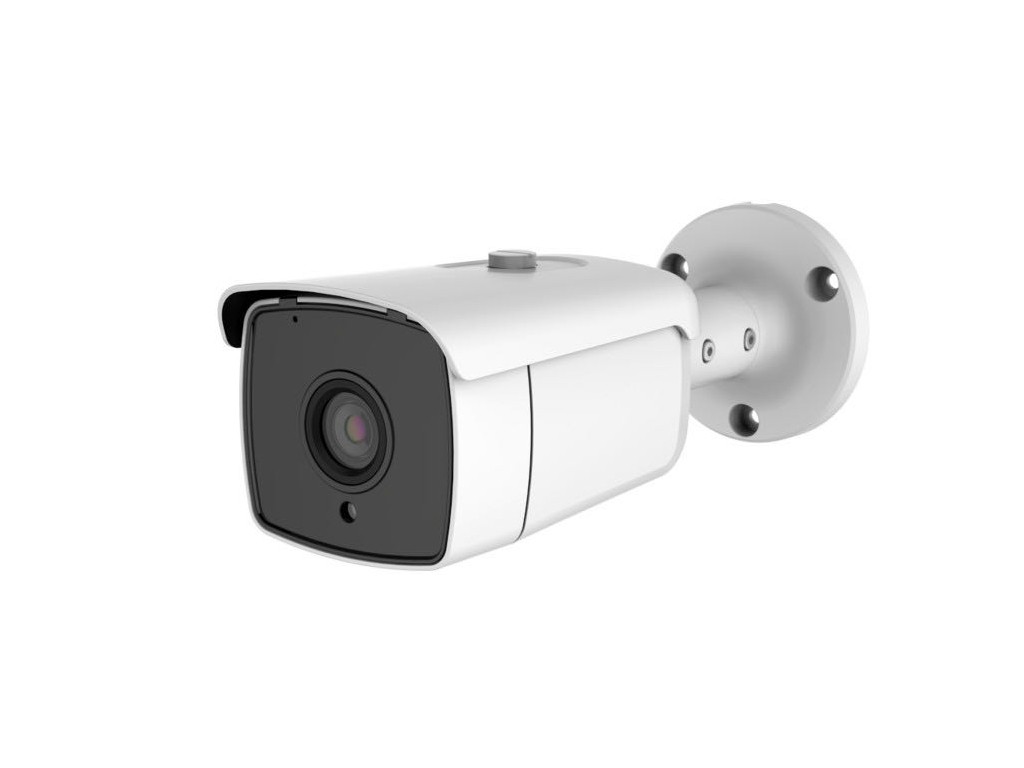

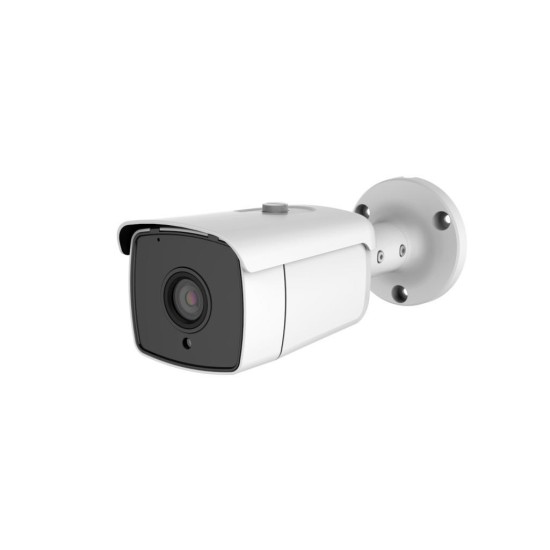

Arline AR-5324 IP 5.0Mp 24 Smt Bullet Kamera

TP-Link EAP225 1350Mbps KABLOSUZ MU-MIMO GIGABİT TAVAN TİPİ ACCESS POİNT
DONANIM ÖZELLİKLERİ
Arabirim Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE)
Fiziksel Güvenlik Kilidi Yes
Buton Reset
Güç Kaynağı • 802.3af PoE
• 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Güç Tüketimi 12.6 W
Boyutlar ( W X D X H ) 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Anten Tipi 3 Internal Omni
• 2.4 GHz: 4 dBi
• 5 GHz: 5 dBi
Montaj Ceiling /Wall Mounting (Kits included)
KABLOSUZ ÖZELLİKLERİ
Kablosuz Standartlar IEEE 802.11ac/n/g/b/a
Frekans 2.4 GHz and 5 GHz
Bağlantı Hızı • 5 GHz:Up to 867 Mbps
• 2.4 GHz:Up to 450 Mbps
Kablosuz Fonksiyonlar • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming*
• Omada Mesh*
• Band Steering
• Load Balance
• MU-MIMO
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Kablosuz Güvenlik • Captive Portal Authentication*
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
İletim Gücü • CE:
≤20 dBm(2.4 GHz, EIRP)
≤23 dBm(5 GHz, EIRP)
• FCC:
≤24 dBm(2.4 GHz)
≤22 dBm(5 GHz)
YÖNETİM
Omada App Yes
Centralized Management • Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller
• Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)
Cloud Access Yes, through
• OC300
• OC200
• Omada Software Controller
• Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)
Eposta Uyarı Yes
LED Açık/Kapalı Kontrolü Yes
MAC Erişim Kontrolü Yönetimi Yes
SNMP v1,v2c
Yerel/Uzak Sistem Günlüğü Kaydı Local/Remote Syslog
SSH Yes
Web-tabanlı Yönetim HTTP/HTTPS
L3 Yönetim Yes
Multi-site Yönetim Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)
DİĞERLERİ
Sertifika CE, FCC, RoHS
Paket İçeriği • AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide
Sistem Gereksinimleri Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Ortam • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
