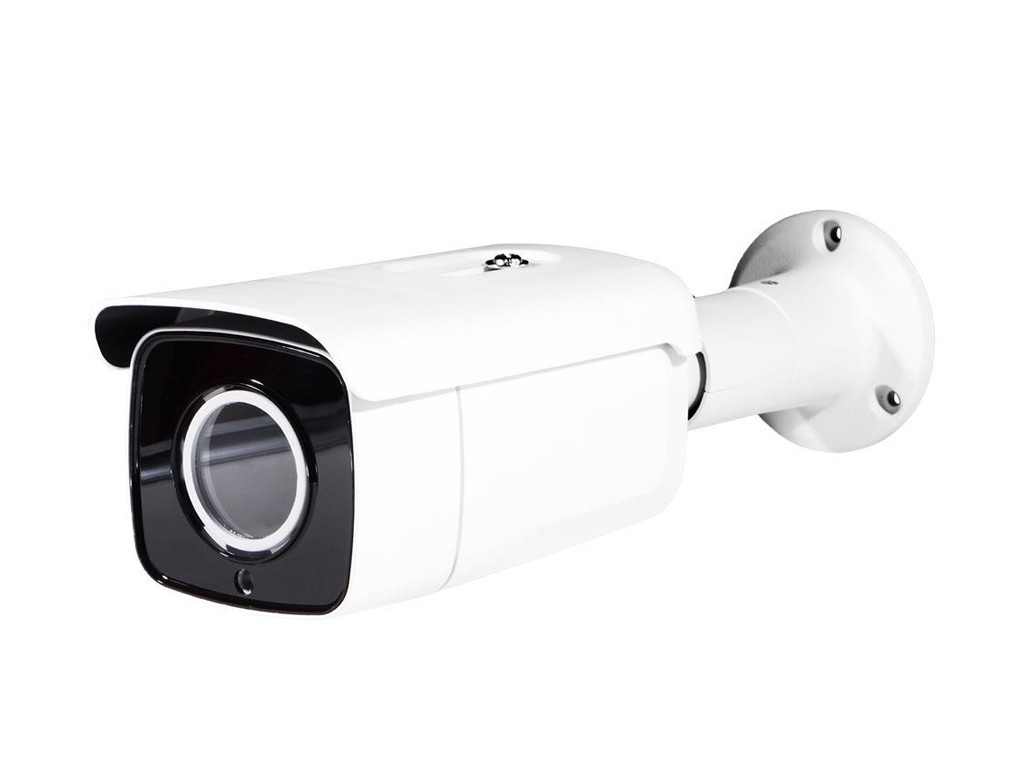

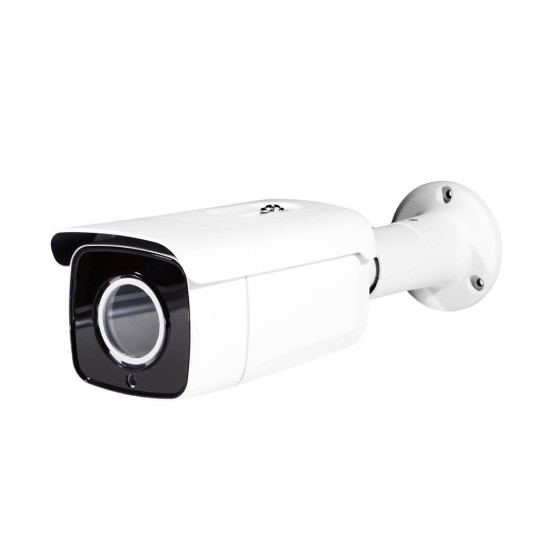

Arline AR-8506 IP 8.0Mp 4 Atom Bullet Kamera

KeyFace 7T Yüz Tanıma Cihazı
50.000 Yüz,7 İnç Dokunmatik Ekran,1.000.000 Log Çift Yapay
Zeka Kamera , IP65 İle Dış Ortama Dayanıklı, PDKS İle
Uyumlu,Maske Algılama
Turnike kullanımı içindir .Dış ortam için uygundur .

TP-Link TL-SG2428P 24GE Smart PoE Switch, 4SFP, L3
250 W PoE Budget: Toplam 250W* güç kaynağına sahip 24× 802.3at/af-uyumlu PoE+ portları
Tam Gigabit Portlar: 24x gigabit PoE+ port ve 4x gigabit SFP Slotlar yüksek hızlı bağlantılar sunar.
Omada SDN Entegrasyonlu: Zero-Touch Provisioning (ZTP)**, Merkezi Bulut Yönetimi ve Akıllı İzleme.
Merkezi Yönetim: Büyük bir konfor ve kolay yönetim için bulut erişimi ve Omada uygulaması.
Statik Yönlendirme: Ağ kaynaklarının daha verimli kullanımı için dahili trafiğin yönlendirilmesine yardımcı olur.
Güçlü Güvenlik Stratejileri: IP-MAC-Port Bağlama, Port Güvenliği, DoS Savunma, Storm kontrolü, DHCP Snooping, 802.1X, Radius Kimlik Doğrulama ve daha fazlası.
Optimize Edilmiş Ses ve Video Uygulamaları: L2/L3/L4 QoS ve IGMP snooping.
IPv6: Çift IPv4/IPv6 stack, MLD snooping, IPv6 komşu keşfine sahip IPv6 desteği.
DONANIM ÖZELLİKLERİ
Standartlar ve Protokoller IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Arabirim • 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 4× Gigabit SFP Slots
Ağ Medyası • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
• 1000BASE-X: MMF, SMF
Fan Sayısı 2
Güç Kaynağı 100-240V AC, 50/60Hz
PoE+ Portları (RJ45) • Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports
• Power Supply: 250 W
PoE Portları (RJ45) • Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports
• PoE Power Budget: 250 W*
Boyutlar ( W X D X H ) 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Montaj Rack Mountable
Maks. Güç Tüketimi • 32.1 W (110 V/ 60 Hz with no PD connected)
• 308.6 W (110 V/ 60 Hz with 250 W PD connected)
Max Heat Dissipation 109.53 BTU/h (with no PD connected)
• 1052.94 BTU/h (with 250 W PD connected)
PERFORMANS
Anahtarlama Kapasitesi 56 Gbps
Bandwidth/Backplane 56 Gbps
Paket Yönlendirme Hızı 41.7 Mpps
MAC Adres Tablosu 8K
Paket Buffer Belleği 4.1 Mbit
Jumbo Frame 9KB
YAZILIM ÖZELLİKLERİ
Quality of Service • Support 802.1p CoS/DSCP priority
• Support 8 priority queues
• Queue scheduling: SP, WRR, SP+WRR
• Port/Flow- based Rate Limiting
• IPv6 QoS
• Voice VLAN
L2 ve L2+ Özellikleri • 32 IP Interfaces
- Support IPv4/IPv6 Interface
• Static Routing
- 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports
per group
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
• Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
Gelişmiş Özellikler • Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
VLAN • VLAN Group
- Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN
Erişim Kontrol Listesi • Support up to 230 entries
• Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
• Time-based ACL
• MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
• IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
• IPv6 ACL
• Combined ACL
• Rule Operation
- Permit/Deny
• Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
• ACL Rules Binding
- Port Binding
- VLAN Binding
• Actions for flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
Güvenlik • AAA
• 802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and
accountability
• IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
• IP Source Guard
- 253 Entries
- Source IP+Source MAC
• IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with
SSLv3/TLS 1.2
• Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
• IP/Port/MAC based access control
IPv6 • Dual IPv4/IPv6 stack
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
IPv6 Uygulamaları
MIBs • MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)
YÖNETİM
Omada App Yes, through
• Omada Cloud-Based Controller
• OC300
• OC200
• Omada Software Controller
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller
Cloud Access Yes, through
• Omada Cloud-Based Controller
• OC300
• OC200
• Omada Software Controller
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller
Management Features • Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log
DİĞERLERİ
Sertifika CE, FCC, RoHS
Paket İçeriği TL-SG2428P
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
Sistem Gereksinimleri Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC® OS, NetWare®, UNIX® or Linux.
Ortam • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
