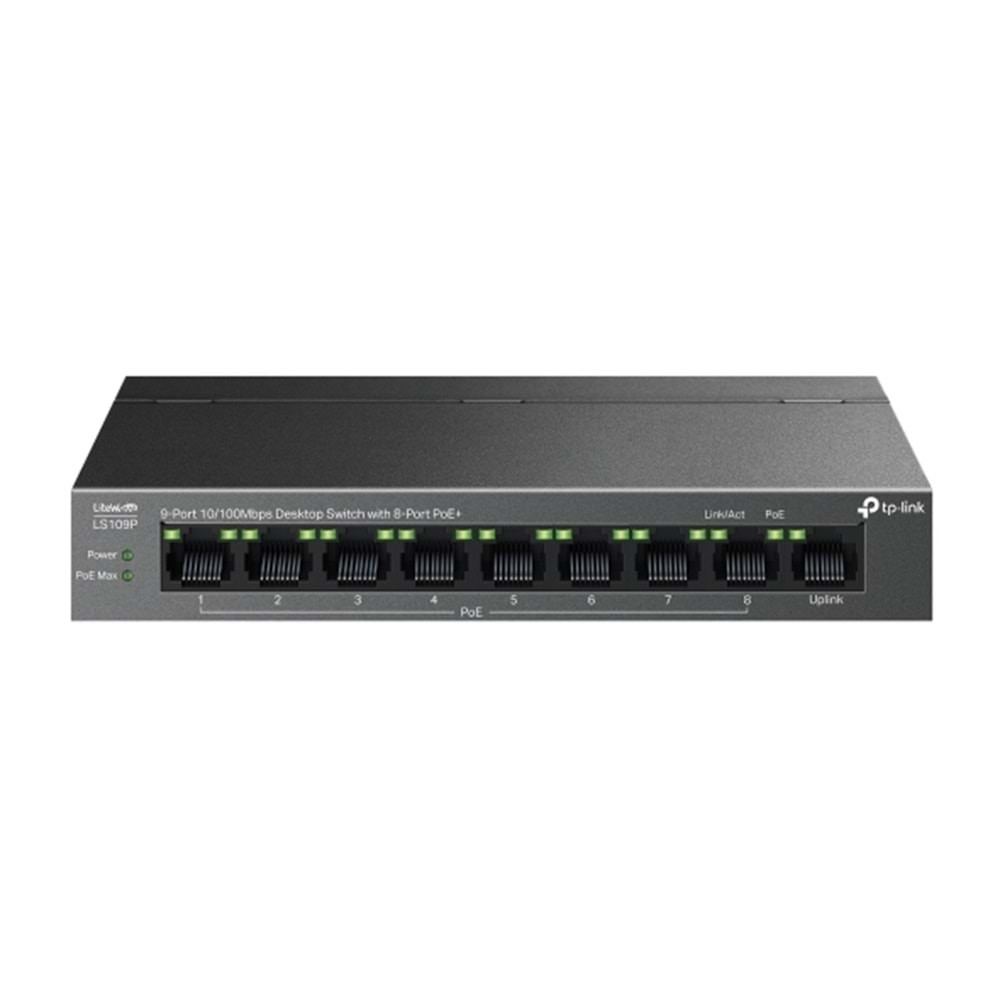

Tp-link LS109P 8-Port PoE+ ile 9-Port 10/100Mbps Masaüstü Switch

TP-LINK TL-SG1428PE 28-Port Gbit POE Smart Swt
DONANIM ÖZELLİKLERİ
Standartlar ve Protokoller IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Arabirim 26 10/100/1000 Mbps RJ45 Ports
2 Gigabit SFP Ports
Ağ Medyası 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Sayısı 2 Fans
Fiziksel Güvenlik Kilidi Yes
Güç Kaynağı 100-240V AC, 50/60 Hz
PoE+ Portları (RJ45) Standard: 802.3at/802.3af compliant
PoE+ Ports: 24 Ports
Power Supply: 250 W
Boyutlar ( W X D X H ) 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Montaj Rack Mountable
Maks. Güç Tüketimi 27 W (220/50Hz. no PD connected)
304.7 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation 92.07 BTU/h (no PD connected)
1039.03 BTU/h (with 250 W PD connected)
PERFORMANS
Anahtarlama Kapasitesi 56 Gbps
Paket Yönlendirme Hızı 41.7 Mbps
MAC Adres Tablosu 8K
Paket Buffer Belleği 4.1 Mbit
Jumbo Frame 9 KB
YAZILIM ÖZELLİKLERİ
Quality of Service Support Port-based 802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Özellikleri IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
VLAN Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Yönetim Web-Based GUI
Easy Smart Configuration Utility
İletim Metodu Store-And-Forward
DİĞERLERİ
Sertifika CE, FCC, RoHS
Paket İçeriği TL-SG1428PE
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Ortam Operating Temperature: 0°C~50°C (32°F~122°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing

TP-LINK ARCHER MR400 1200 Mbps DUAL BAND 3G/4G LTE ROUTER
Gelişmiş teknoloji 4G ağı – 64'e kadar Wi-Fi cihazıyla internet erişimini paylaşın ve 150 Mbps'ye varan indirme hızlarının keyfini çıkarın
AC1200 Wi-Fi – 2.4 GHz bandında 300 Mbps'ye ve 5 GHz bandında 867 Mbps'ye kadar maksimum hızlarla eşzamanlı çift bantlı Wi-Fi ağları oluşturur
Bir SIM kart takın ve çalıştırın - yapılandırma gerekmez, 100'den fazla ülkede SIM kartlar için uyumluluk yıllarca süren saha testleri ile garanti edilir
Ayrılabilir iki gelişmiş LTE anteni - iki harici anten sayesinde her cihaza kararlı ve verimli bağlantıların keyfini çıkarın
DONANIM ÖZELLİKLERİ
Arabirim 3× 10/100Mbps LAN Ports, 1× 10/100Mbps LAN/WAN Port,
1× Micro SIM Card Slot
Buton WPS/RESET Button, Wi-Fi ON/OFF Button
Harici Güç Kaynağı 12V/1A
Boyutlar ( W X D X H ) 6.85 × 4.9 × 1.32 in (174 × 124.5 × 33.5 mm)
Anten 2× Detachable External 4G LTE Antennas
KABLOSUZ ÖZELLİKLERİ
Kablosuz Standartlar IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frekans 2.4 GHz and 5 GHz
Bağlantı Hızı 300Mbps at 2.4GHz, 867Mbps at 5GHz
Alıcı Hassasiyeti 5 GHz:
11a 54M: -77 dBm
11ac VHT20 MCS0: -95.5 dBm 11ac VHT20 MCS8: -73 dBm
11ac VHT40 MCS0: -93 dBm 11ac VHT20 MCS9: -68 dBm
11ac VHT80 MCS0: -90 dBm 11ac VHT20 MCS9: -65 dBm
2.4 GHz:
11g 54M: -74.5 dBm
11n HT20 MCS0: -92 dBm 11n HT20 MCS7: -73 dBm
11n HT40 MCS0: -89 dBm 11n HT40 MCS7: -70 dBm
İletim Gücü < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
Kablosuz Fonksiyonlar Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
WAN Failover Yes
Kablosuz Güvenlik 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Ağ Türü 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz)
TDD-LTE B38/B40/B41 (2600/2300/2500 MHz)
3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz)

Tp-link LS108GP 8-Port Gigabit Desktop Switch with 8-Port PoE+
Full Gigabit Ports: Eight gigabit auto-negotiation ports provide up to 16 Gbps switching capacity.
62 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*
Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
Plug and Play: Simply plug and play for instant connectivity with no configuration required.
Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
DONANIM ÖZELLİKLERİ
Arabirim • 8× 10/100/1000Mbps RJ45 Ports (Ports 1–8 supports 802.3af/at PoE+)
• AUTO Negotiation
• AUTO MDI/MDIX
Ağ Medyası • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Fan Sayısı Fanless
Kurulum • Desktop
• Wall Mounting
Güç Kaynağı External Power Adapter (Output: 53.5 VDC / 1.31 A)
PoE Portları (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8, up to 30 W PoE output per port
• PoE Budget: 62 W
Boyutlar ( W X D X H ) 6.2×3.9×1.0 in (158×99×25 mm)
Maks. Güç Tüketimi • 5.53 W (220 V/50 Hz. no PD connected)
• 71.61 W (220 V/50 Hz. with 62 W PD connected)
Max Heat Dissipation • 18.81 BTU/h (220 V/50 Hz. no PD connected)
• 243.47 BTU/h (220 V/50 Hz. with 62 W PD connected)
PERFORMANS
Anahtarlama Kapasitesi 16 Gbps
Paket Yönlendirme Hızı 11.9 Mpps
MAC Adres Tablosu 4K
Jumbo Frame 16 KB
YAZILIM ÖZELLİKLERİ
Gelişmiş Özellikler • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery Button (Ports 1-8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Green Technology
Transfer Metodu Store-And-Forward
DİĞERLERİ
Sertifika FCC, CE, RoHS
Paket İçeriği • LS108GP
• Power Adapter
• Installation Guide
Ortam • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

TP-Link EAP110 300 Mbps 2.4 Ghz Tavan Tipi Access Point
DONANIM ÖZELLİKLERİ
Arabirim 1× Fast Ethernet (RJ-45) Port (Support Passive PoE)
Buton Reset
Güç Kaynağı 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Güç Tüketimi 2.8 W
Boyutlar ( W X D X H ) 7.5×6.7×1.2 in (189.5×170.5×29.7mm)
Dimensions 7.5×6.8×1.2 in (189.4×172.3×29.5mm)
Anten Tipi Internal 2× 4 dBi Omni
Montaj Ceiling /Wall Mounting (Kits included)
KABLOSUZ ÖZELLİKLERİ
Coverage 60㎡(650ft²)§
Wireless Client Capacity 100+**
Concurrent Clients 100+**
Kablosuz Standartlar IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frekans 2.4–2.4835 GHz
Bağlantı Hızı • 11n: Up to 300 Mbps (dynamic)
• 11g: Up to 54 Mbps (dynamic)
• 11b: Up to 11 Mbps (dynamic)
Alıcı Hassasiyeti • 300M: -71 dBm@10% PER
• 150M: -75 dBm@10% PER
• 54M: -78 dBm@10% PER
• 11M: -93 dBm@8% PER
• 6M: -92 dBm@10% PER
• 1M: -96 dBm@8% PER
Kablosuz Fonksiyonlar • Multiple SSIDs （Up to 8 SSIDs）
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control （Adjust Transmit Power on dBm）
• QoS(WMM)
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Kablosuz Güvenlik • Captive Portal Authentication
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
İletim Gücü • CE:
≤19 dBm (EIRP)
• FCC:
≤21 dBm
YÖNETİM
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Eposta Uyarı Yes
LED Açık/Kapalı Kontrolü Yes
MAC Erişim Kontrolü Yönetimi Yes
SNMP v1,v2c
Yerel/Uzak Sistem Günlüğü Kaydı Local/Remote Syslog
SSH Yes
Web-tabanlı Yönetim HTTP/HTTPS
L3 Yönetim Yes
Multi-site Yönetim Yes
Management VLAN Yes
DİĞERLERİ
Sertifika CE, FCC, RoHS
Paket İçeriği • 300Mbps Wireless N Ceiling Mount Access Point EAP110
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide
Sistem Gereksinimleri Microsoft Windows 10/8/7/Vista/XP
Ortam • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

TP-Link TL-SG2428P 24GE Smart PoE Switch, 4SFP, L3
250 W PoE Budget: Toplam 250W* güç kaynağına sahip 24× 802.3at/af-uyumlu PoE+ portları
Tam Gigabit Portlar: 24x gigabit PoE+ port ve 4x gigabit SFP Slotlar yüksek hızlı bağlantılar sunar.
Omada SDN Entegrasyonlu: Zero-Touch Provisioning (ZTP)**, Merkezi Bulut Yönetimi ve Akıllı İzleme.
Merkezi Yönetim: Büyük bir konfor ve kolay yönetim için bulut erişimi ve Omada uygulaması.
Statik Yönlendirme: Ağ kaynaklarının daha verimli kullanımı için dahili trafiğin yönlendirilmesine yardımcı olur.
Güçlü Güvenlik Stratejileri: IP-MAC-Port Bağlama, Port Güvenliği, DoS Savunma, Storm kontrolü, DHCP Snooping, 802.1X, Radius Kimlik Doğrulama ve daha fazlası.
Optimize Edilmiş Ses ve Video Uygulamaları: L2/L3/L4 QoS ve IGMP snooping.
IPv6: Çift IPv4/IPv6 stack, MLD snooping, IPv6 komşu keşfine sahip IPv6 desteği.
DONANIM ÖZELLİKLERİ
Standartlar ve Protokoller IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Arabirim • 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 4× Gigabit SFP Slots
Ağ Medyası • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
• 1000BASE-X: MMF, SMF
Fan Sayısı 2
Güç Kaynağı 100-240V AC, 50/60Hz
PoE+ Portları (RJ45) • Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports
• Power Supply: 250 W
PoE Portları (RJ45) • Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports
• PoE Power Budget: 250 W*
Boyutlar ( W X D X H ) 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Montaj Rack Mountable
Maks. Güç Tüketimi • 32.1 W (110 V/ 60 Hz with no PD connected)
• 308.6 W (110 V/ 60 Hz with 250 W PD connected)
Max Heat Dissipation 109.53 BTU/h (with no PD connected)
• 1052.94 BTU/h (with 250 W PD connected)
PERFORMANS
Anahtarlama Kapasitesi 56 Gbps
Bandwidth/Backplane 56 Gbps
Paket Yönlendirme Hızı 41.7 Mpps
MAC Adres Tablosu 8K
Paket Buffer Belleği 4.1 Mbit
Jumbo Frame 9KB
YAZILIM ÖZELLİKLERİ
Quality of Service • Support 802.1p CoS/DSCP priority
• Support 8 priority queues
• Queue scheduling: SP, WRR, SP+WRR
• Port/Flow- based Rate Limiting
• IPv6 QoS
• Voice VLAN
L2 ve L2+ Özellikleri • 32 IP Interfaces
- Support IPv4/IPv6 Interface
• Static Routing
- 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports
per group
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
• Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
Gelişmiş Özellikler • Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
VLAN • VLAN Group
- Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN
Erişim Kontrol Listesi • Support up to 230 entries
• Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
• Time-based ACL
• MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
• IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
• IPv6 ACL
• Combined ACL
• Rule Operation
- Permit/Deny
• Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
• ACL Rules Binding
- Port Binding
- VLAN Binding
• Actions for flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
Güvenlik • AAA
• 802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and
accountability
• IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
• IP Source Guard
- 253 Entries
- Source IP+Source MAC
• IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with
SSLv3/TLS 1.2
• Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
• IP/Port/MAC based access control
IPv6 • Dual IPv4/IPv6 stack
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
IPv6 Uygulamaları
MIBs • MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)
YÖNETİM
Omada App Yes, through
• Omada Cloud-Based Controller
• OC300
• OC200
• Omada Software Controller
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller
Cloud Access Yes, through
• Omada Cloud-Based Controller
• OC300
• OC200
• Omada Software Controller
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller
Management Features • Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log
DİĞERLERİ
Sertifika CE, FCC, RoHS
Paket İçeriği TL-SG2428P
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
Sistem Gereksinimleri Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC® OS, NetWare®, UNIX® or Linux.
Ortam • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Tp-link Omada DS105G 5-Port Gigabit Unmanaged Desktop Metal Switch
Teknik Özellikler
Port Sayısı: 5 × 10/100/1000 Mbps RJ45 (Auto-Negotiation, Auto-MDI/MDIX)

Standartlar: IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1p

Anahtarlama Kapasitesi: 10 Gbps

Paket Yönlendirme Hızı: 7.4 Mpps

MAC Adres Tablosu: 2K

Paket Buffer Belleği: 1.5 Mb

Jumbo Frame: 16 KB

Güç Kaynağı: 5VDC / 0.6A harici adaptör

Maksimum Güç Tüketimi: 3.25 W

Boyutlar: 100 × 98 × 25 mm

Fan: Yok (sessiz çalışma)

Tp-link Omada Ds1024G 24-Port Gigabit Rackmount Switch
DONANIM ÖZELLİKLERİ
Standartlar ve Protokoller IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Arabirim 24× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Ağ Medyası • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Sayısı Fanless
Fiziksel Güvenlik Kilidi Yes
Güç Kaynağı 100-240VAC, 50/60Hz
Boyutlar ( W X D X H ) 17.3 × 5.5 × 1.7 in (440 × 140 × 44 mm)
Montaj Rack Mountable
Maks. Güç Tüketimi 13.62W
Max Heat Dissipation 46.44BTU/h
PERFORMANS
Anahtarlama Kapasitesi 48Gbps
Paket Yönlendirme Hızı 35.7Mpps
MAC Adres Tablosu 8K
Jumbo Frame 10KB
YAZILIM ÖZELLİKLERİ
Gelişmiş Özellikler • Isolation Mode: Ports 1-22
• Loop Prevention: Ports 1-24
• 802.1P/DSCP QoS
• Green Ethernet technology
Transfer Metodu Store and Forward
DİĞERLERİ
Sertifika FCC, CE, RoHS
Paket İçeriği • DS1024G
• Power Cord
• Installation Guide
• Rackmount Kits
• Rubber Feet
Ortam • Operating Temperature: 0℃~40℃ (32℉~104℉);
• Storage Temperature: -40℃~70℃ (-40℉~158℉);
• Operating Humidity: 10%~90% non-condensing;
• Storage Humidity: 5%~90% non-condensing

TP-LINK EAP223 AC1350 Wireless Dual Band Ceiling AP
DONANIM ÖZELLİKLERİ
Arabirim Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE)
Fiziksel Güvenlik Kilidi Yes
Buton Reset
Güç Kaynağı • 802.3af PoE
• 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter IS NOT Included)
Güç Tüketimi 12.6 W
Boyutlar ( W X D X H ) 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Anten Tipi 3 Internal Omni
• 2.4 GHz: 4 dBi
• 5 GHz: 5 dBi
Montaj Ceiling /Wall Mounting (Kits included)
KABLOSUZ ÖZELLİKLERİ
Coverage 115㎡(1250 ft²)§
Concurrent Clients 220+**
Kablosuz Standartlar IEEE 802.11ac/n/g/b/a
Frekans 2.4 GHz and 5 GHz
Bağlantı Hızı • 5 GHz:Up to 867 Mbps
• 2.4 GHz:Up to 450 Mbps
Kablosuz Fonksiyonlar • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming*
• Omada Mesh*
• Band Steering
• Load Balance
• MU-MIMO
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Kablosuz Güvenlik • Captive Portal Authentication*
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
İletim Gücü • CE:
≤20 dBm(2.4 GHz, EIRP)
≤23 dBm(5 GHz, EIRP)
• FCC:
≤24 dBm(2.4 GHz)
≤22 dBm(5 GHz)
YÖNETİM
Omada App Yes
Centralized Management • Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes, through
• OC300
• OC200
• Omada Software Controller
• Omada Cloud-Based Controller
Eposta Uyarı Yes
LED Açık/Kapalı Kontrolü Yes
MAC Erişim Kontrolü Yönetimi Yes
SNMP v1,v2c
Yerel/Uzak Sistem Günlüğü Kaydı Local/Remote Syslog
SSH Yes
Web-tabanlı Yönetim HTTP/HTTPS
L3 Yönetim Yes
Multi-site Yönetim Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller
DİĞERLERİ
Sertifika CE, FCC, RoHS
Paket İçeriği • AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223
• Mounting Kits
• Installation Guide
Sistem Gereksinimleri Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Ortam • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

TP-Link ARCHER VR300 1200 Mbps KABLOSUZ DUAL BAND GIGABIT MODEM/ROUTER
Teknik Özellikler
Kablosuz Hız:

2.4 GHz: 300 Mbps

5 GHz: 867 Mbps

Toplam: 1200 Mbps AC Wi-Fi

Kablosuz Standartlar:

IEEE 802.11b/g/n (2.4 GHz)

IEEE 802.11a/n/ac (5 GHz)

Anten:

4 adet harici yüksek kazançlı anten

Geniş kapsama ve güçlü sinyal

Portlar:

1× DSL port

4× Gigabit LAN portu

1× Gigabit LAN/WAN portu

İnternet Uyumluluğu:

VDSL2, ADSL2+, ADSL

Ethernet WAN desteği (fiber/kablo ile uyumlu)

Boyutlar:

243 × 160.6 × 32.5 mm

Tp-link MW302R 300Mbps Multi-Mode Wireless N Access Point Menzil Genişletici Router
Teknik Özellikler
Kablosuz Hız: 300 Mbps (2.4 GHz)

Standartlar: IEEE 802.11b/g/n

Modlar: Router, Access Point, Range Extender

Antenler: 2 × 5 dBi sabit harici anten

Ethernet Portları: 1 × WAN (10/100 Mbps), 2 × LAN (10/100 Mbps)

Güvenlik: WPA/WPA2, WPA-PSK/WPA2-PSK şifreleme

Kablosuz Özellikler: MAC filtreleme, SSID gizleme, Kablosuz zamanlama

Yönetim: Web tabanlı arayüz

Boyutlar: 167 × 118 × 33 mm

Güç Kaynağı: 9V / 0.6A

Tp-link Omada DS106P Omada 6-Port 10/100 D.Sw 4-Port PoE+
DONANIM ÖZELLİKLERİ
Arabirim • 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+)
• AUTO Negotiation
• AUTO MDI/MDIX
Ağ Medyası • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Sayısı Fanless
Fiziksel Güvenlik Kilidi Yes
Harici Güç Kaynağı External Power Adapter (Output: 53.5 V DC / 1.31 A)
Paket Yönlendirme Hızı 0.8928 Mpps
PoE Portları (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 67 W
MAC Adres Tablosu 2K
Jumbo Frame 2 KB
Switching Kapasitesi 1.2 Gbps
Boyutlar ( W X D X H ) 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
Maks. Güç Tüketimi • 2.52 W (220 V / 50 Hz, no PD connected)
• 75.4 W (220 V / 50 Hz, with 67 W PD connected)
Max Heat Dissipation • 8.59 BTU/h(no PD connected)
• 257.11 BTU/h(with 67 W PD connected)
YAZILIM ÖZELLİKLERİ
İletim Metodu Store-And-Forward
Gelişmiş Fonksiyonlar • Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode: Ports 1–4
• Priority Mode: Ports 1–2
• PoE Auto Recovery: Ports 1-4
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
DİĞERLERİ
Sertifika FCC, CE, RoHS
Paket İçeriği • DS106P
• Power Adapter
• Installation Guide
Ortam • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Tp-Link LS1005 5-Port 10/100 Mbps Desktop Switch
Teknik Özellikler
Port Sayısı: 5 × 10/100 Mbps RJ45

Standartlar: IEEE 802.3, 802.3u, 802.3x

İletim Modu: Store-and-Forward

Anahtarlama Kapasitesi: 1 Gbps

Paket Yönlendirme Hızı: 0.74 Mpps

MAC Adres Tablosu: 2K

Enerji Tüketimi: Maksimum 2.05W

Boyutlar: 97 × 57 × 21 mm

Çalışma Sıcaklığı: 0°C ~ 40°C

Montaj Tipi: Masaüstü

Fan: Yok (sessiz çalışma)

Yeşil Teknoloji: Enerji tasarrufu sağlayan çevre dostu tasarım
